6.8 uH Space Grade High Current Low Profile Planar Inductor

SKU: SHILO3225-15RS

Space Qualified Inductor by Vanguard Electronics (1576 more products)
Download Datasheet Request Information

Note : Your request will be directed to Vanguard Electronics.

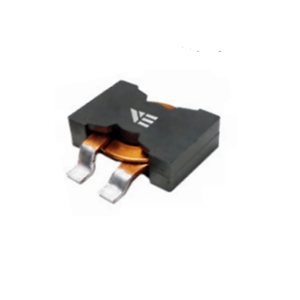

SHILO3225-15RS Image

The SHILO3225-15RS from Vanguard Electronics is a Space Qualified Inductor with Inductance 6.8 uH, Inductance Tolerance ±30%, DCR 2.2 mOhms, Saturation Current 30000 mA, Temperature Operating Range -55 to 130 Degree C. Tags: Surface Mount. More details for SHILO3225-15RS can be seen below.

Product Specifications

Product Details

  • Part Number
    SHILO3225-15RS
  • Manufacturer
    Vanguard Electronics
  • Description
    6.8 uH Space Grade High Current Low Profile Planar Inductor

General Parameters

  • Section
    Power Inductor
  • Types of Inductor
    Current Inductor, Planar Inductor
  • Inductance
    6.8 uH
  • Inductance Tolerance
    ±30%
  • DCR
    2.2 mOhms
  • Saturation Current
    30000 mA
  • Temperature Operating Range
    -55 to 130 Degree C
  • Space Standard
    MIL-STD-981
  • Dimension
    1.45 x 1.3 x 1 Inches
  • Applications
    GPS
  • Standard
    MIL-STD-981 Class S, MIL-STD-981 Class B
  • Package Type
    Surface Mount
  • Package
    SMD
