0.22-15 µH Space Grade Tin/Lead Shielded Inductor

SKU: IHLP-2020CZ-5L

Space Qualified Inductor by Vishay
49 more products
Download Datasheet Request Information

Note : Your request will be directed to Vishay.

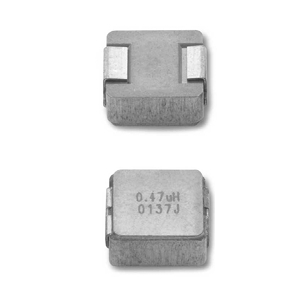

IHLP-2020CZ-5L Image

The IHLP-2020CZ-5L from Vishay is a Space-Qualified Inductor with an inductance range of 0.22-15 µH and an inductance tolerance of +/- 20 %. This tin/lead inductor has a direct current resistance of 3.95-195 mOhm and a self resonant frequency of 14.1-190 MHz. It has a heat rating current of 2.4-18 A and a DC saturation current of 1.6-11 A. The inductor features a shielded construction with IHLP design and Tin/lead Sn/Pb plated terminals. It is suitable for PDAs, notebooks, desktops, servers, high-current POL converters, high-current power supplies, battery-powered devices, DC/DC converters in distributed systems and DC/DC converters for FPGAs.

Product Specifications

Product Details

  • Part Number
    IHLP-2020CZ-5L
  • Manufacturer
    Vishay
  • Description
    0.22-15 µH Space Grade Tin/Lead Shielded Inductor

General Parameters

  • Section
    Power Inductor
  • Inductance
    0.22 to 15 uH
  • Inductance Tolerance
    ±20%
  • DCR
    3.95 to 208 mOhms
  • Saturation Current
    1.6 to 11 A
  • SRF
    14.1 to 190 MHz
  • Temperature Operating Range
    -55 to 125 Degree C
  • Dimension
    5.7 x 5.4 x 3 mm
  • Applications
    PDA / Notebook / Desktop / Server Applications, High current POL converters, Low profile, High Current Power Supplies, Battery powered devices, DC/DC converters in distributed power systems, DC/DC converter for field programmable gate array (FPGA)
  • Package Type
    Surface Mount
  • Note
    DC Current : 2.4 to 18 A
