RW1

Reaction Wheel by Blue Canyon Technologies
6 more products
Download Datasheet Request Information

Note : Your request will be directed to Blue Canyon Technologies.

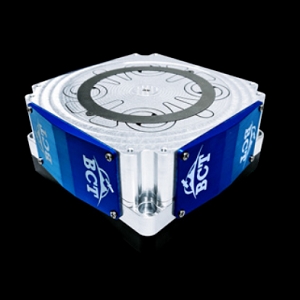

RW1 Image

The RW1 from Blue Canyon Technologies is a Reaction Wheel with Torque 70 mNm, Angular Momentum 1 Nms, Mass 0.95 Kg, Supply Voltage 22 to 34 V, Power Consumption 10 W. More details for RW1 can be seen below.

Product Specifications

Product Details

  • Part Number
    RW1
  • Manufacturer
    Blue Canyon Technologies
  • Description
    1 Nms Angular Momentum Reaction Wheels with advanced lubrication system for long life and vibration isolation

General Parameters

  • Torque
    70 mNm
  • Angular Momentum
    1 Nms
  • Mass
    0.95 Kg
  • Supply Voltage
    22 to 34 V
  • Power Consumption
    10 W
  • Space Heritage
    Yes
  • Interface
    RS-422
  • Dimension
    110 x 110 x 54 mm
  • Application
    Spacecraft

Technical Documents
Press Release Link  »
