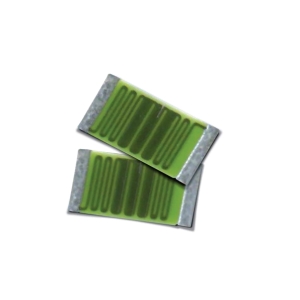

The MCH (2512) from Ohmcraft is a Space Qualified Resistor with a resistance range of 10 KOhm to 50 GOhms. This thick-film high-voltage chip resistor has an extended TCR range of up to 25 ppm/ degrees C. It has a power rating of 2 W and a voltage rating of 3000 V. This resistor features patented Micropen precision printing technology that provides ultra-precision and thick-film high-voltage rating. It is constructed using a thick film resistive element and a 96% alumina substrate. The resistor is screened and qualified to MIL-PRF-55342, MIL-PRF-49462, and NASA EEE-INST-002 (level 1 & 2). It is a surface mount resistor which measures 6.35 x 3.18 x 0.76 mm and is ideal for military, electronic warfare, and space applications.
