Chip Resistor 30 W

SKU: 81-3005A

Space Qualified Resistor by Smiths Interconnect
137 more products
Request Information

Note : Your request will be directed to Smiths Interconnect.

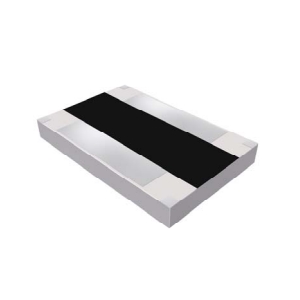

81-3005A Image

The 81-3005A from Smiths Interconnect is a Space Qualified Resistor with Resistance 5 to 120 Ohms, Power Rating 30 W, Tolerance ±5% (1 and 2% available), Operating Temperature -55 to 150 Degree C. Tags: Surface Mount. More details for 81-3005A can be seen below.

Product Specifications

Product Details

  • Part Number
    81-3005A
  • Manufacturer
    Smiths Interconnect
  • Description
    Chip Resistor 30 W

General Parameters

  • Resistor Type
    Chip Resistor, Thin Film Resistor, Thick Film Resistor
  • Resistance
    5 to 120 Ohms
  • Power Rating
    30 W
  • Substrate Material
    Beryllium Oxide
  • Technology
    Thick Film, Thin Film
  • Tolerance
    ±5% (1 and 2% available)
  • Operating Temperature
    -55 to 150 Degree C
  • Temperature Coefficient of Resistance
    ±200 ppm/ Degree C
  • Package Type
    Surface Mount
  • Application
    Broadcast, High Power Filters, High Power Amplifiers, Isolators, Military, Instrumentation
  • Dimension
    8.89 x 5.84 x 1.02 mm
