RCWPM-2010-98

Space Qualified Resistor by Vishay
127 more products
Download Datasheet Request Information

Note : Your request will be directed to Vishay.

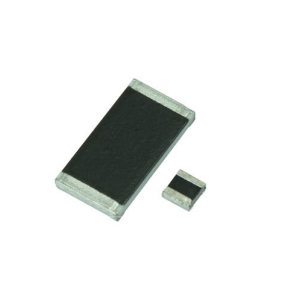

RCWPM-2010-98 Image

The RCWPM-2010-98 from Vishay is a Space Qualified Resistor with Resistance 1 Ohms to 22 MOhms, Power Rating 0.8 W, Voltage 150 V, Tolerance ±0.5 %, ±1 %, ±2 %, 5 %, ±10 %, Operating Temperature -65 to 150 Degree C. Tags: Chip. More details for RCWPM-2010-98 can be seen below.

Product Specifications

Product Details

  • Part Number
    RCWPM-2010-98
  • Manufacturer
    Vishay
  • Description
    Thick Film Chip Resistors, Military / Established Reliability MIL-PRF-55342 Qualified, Type RM

General Parameters

  • Resistor Type
    Chip Resistor
  • Space Standard
    ESCC-4001
  • Resistance
    1 Ohms to 22 MOhms
  • Power Rating
    0.8 W
  • Voltage
    150 V
  • Substrate Material
    Alumina
  • Technology
    Thick film
  • Tolerance
    ±0.5 %, ±1 %, ±2 %, 5 %, ±10 %
  • Operating Temperature
    -65 to 150 Degree C
  • Temperature Coefficient of Resistance
    ±100 ppm/ Degree C, ±200 ppm/ Degree C, ±300 ppm/ Degreee C
  • Package Type
    Chip
  • Application
    Military
  • Dimension
    0.197 x 0.098 x 0.02 Inches(L x W x T)
