29.510-29.746 GHz Space Qualified Bandpass Filter

SKU: E1507

Space Qualified RF Filter by Mercury Systems
6 more products
Download Datasheet Request Information

Note : Your request will be directed to Mercury Systems.

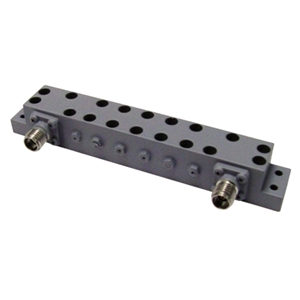

E1507 Image

The E1507 from Mercury Systems is a Space Qualified RF Filter with a frequency range of 29510-29746 MHz and has a maximum insertion loss of 1.5 dB. It has a passband phase deviation of +/- 5° and has a maximum VSWR of 1.5:1. This space-qualified RF

Product Specifications

Product Details

  • Part Number
    E1507
  • Manufacturer
    Mercury Systems
  • Description
    29.510-29.746 GHz Space Qualified Bandpass Filter

General Parameters

  • Space Heritage
    Yes
  • Filter Type
    Band Pass Filter
  • Configuration
    Cavity Filter
  • Frequency
    29.51 to 29.746 GHz
  • Insertion Loss
    1.5 dB
  • Rejection
    40 to 60 dB
  • VSWR
    1.50:1
  • Operating Temperature
    -40 to 50 Degree C
  • Package Type
    Module with Connectors
  • Application
    Test Equipment, Communications, Test & Measurement, Ka Band
  • Dimension
    0.5 x 0.5 x 2.5 Inches
