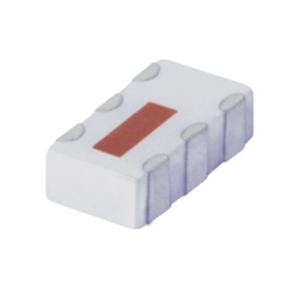

The HFCN-2700AD from Mini Circuits is a Space Qualified RF Filter with a frequency range of 2900-8700 MHz. This high pass filter has a stop band rejection loss of 20-30 dB and a pass band insertion loss of 1.5-2 dB. It has a stop band VSWR of 20:1 and a pass band VSWR of 1.5:1. The filter has a frequency cut-off of 3 dB at 2700 MHz and a maximum RF power input handling capacity of 7 W. It features LTCC construction and has a hermetically sealed packaging weighing 0.02 g. This RoHS-complaint ceramic filter is suitable for applications such as sub-harmonic rejection and transmitters/receivers.
