Indra SOTP

Satellite Terminal by Indra
4 more products
Download Datasheet Request Information

Note : Your request will be directed to Indra.

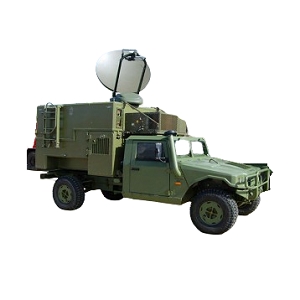

Indra SOTP Image

The Indra SOTP from Indra is a Satellite Terminal with Antenna Diameter 1.2 m, 1.5 m, 1.8 m, Antenna Size 1.2 m., 1.5 m, 1.8 m, Azimuth Range 360 Degrees, Transmitter Frequency 7.9 to 8.4 GHz, Receiver Frequency 7.25 to 7.75 GHz. Tags: SATCOM-on-the-Pause Terminal. More details for Indra SOTP can be seen below.

Product Specifications

Product Details

  • Part Number
    Indra SOTP
  • Manufacturer
    Indra
  • Description
    Satellite Terminal for rapid deployable Military Communications from 7.9 to 8.4 GHz

General Parameters

  • Type
    SATCOM-on-the-Pause Terminal
  • Antenna Diameter
    1.2 m, 1.5 m, 1.8 m
  • Deployment
    Ground
  • Configuration
    Portable
  • Band
    X Band
  • Standard
    MIL-STD-810 E
  • Antenna Type
    Parabolic Reflector Antenna
  • Antenna Size
    1.2 m., 1.5 m, 1.8 m
  • Polarization
    Circular
  • Azimuth Range
    360 Degrees
  • Transmitter Frequency
    7.9 to 8.4 GHz
  • Receiver Frequency
    7.25 to 7.75 GHz
  • Reflector Diameter
    1.2 m, 1.5 m, 1.8 m
  • Elevation Range
    6 to 91 Degrees
  • Power Consumption
    80 W
  • G/T
    17 dB/K
  • EIRP
    57 dBW
  • Operating Temperature
    -30 to 50 Degree C
  • Operational Windspeed
    60 kmph
  • Application
    Military
