  5. S2DR 1000

Dual-Transceiver Space SDR

SKU: S2DR 1000

Software Defined Radio by Augustus Aerospace Company
1 more product
Download Datasheet Request Information

Note : Your request will be directed to Augustus Aerospace Company.

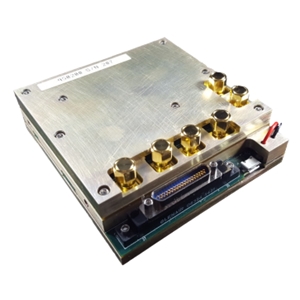

S2DR 1000 Image

The S2DR 1000 from Augustus Aerospace Company is a Software Defined Radio with Frequency 70 MHz to 6 GHz, Data Rate 65 Mbps, Voltage 9 to 28 V. Tags: Transceiver. More details for S2DR 1000 can be seen below.

Product Specifications

Product Details

  • Part Number
    S2DR 1000
  • Manufacturer
    Augustus Aerospace Company
  • Description
    Dual-Transceiver Space SDR

General Parameters

  • Type
    Transceiver
  • Frequency
    70 MHz to 6 GHz
  • Data Rate
    65 Mbps
  • Grade
    Satellite
  • Voltage
    9 to 28 V
  • Power Consumption
    3.6 to 7 W
  • Interface
    USB 2.0, UART
  • Software
    Xilinx ZYNQ® 7030 SOC processor (dual ARM® 9 cores, Kintex® 7 FPGA)
  • Application
    Space-based RF sensor platforms, Tactical radio space-based repeaters, Precision time and frequency applications, Multi-channel / Multiprotocol radio communications, Flexible / Reprogrammable mission data transponders
  • Connectors
    SMA
  • Dimensions
    9 x 9.6 x 2.7 cm
  • Weight
    435 g
  • Configuration
    Module
  • Note
    Grade : Space Qualified

Technical Documents
