2.02 to 2.12 GHz / 2.2 to 2.3 GHz Software Defined Radio

SKU: Frontier-S

Software Defined Radio by Rocket Lab
Download Datasheet Request Information

Note : Your request will be directed to Rocket Lab.

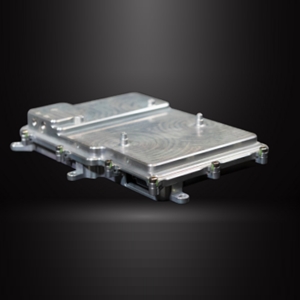

Frontier-S Image

The Frontier-S from Rocket Lab is a Software Defined Radio with Frequency 2020 to 2120 MHz / 2200 to 2300 MHz, Output Power 0.07 to 0.7 W, Data Rate 100 Bd to 10 MBd, Sensitivity -145 dBm, Voltage 22 to 35 V. Tags: Transceiver. More details for Frontier-S can be seen below.

Product Specifications

Product Details

  • Part Number
    Frontier-S
  • Manufacturer
    Rocket Lab
  • Description
    2.02 to 2.12 GHz / 2.2 to 2.3 GHz Software Defined Radio

General Parameters

  • Type
    Transceiver
  • Frequency
    2020 to 2120 MHz / 2200 to 2300 MHz
  • Bandwidth
    150 kHz to 1.7 MHz
  • Modulation
    PM, BPSK, QPSK, O/SQPSK
  • Output Power
    0.07 to 0.7 W
  • Data Rate
    100 Bd to 10 MBd
  • Noise Figure
    5.7 dB
  • Grade
    Satellite
  • Sensitivity
    -145 dBm
  • Voltage
    22 to 35 V
  • Power Consumption
    3.5 to 6.8 W
  • Interface
    SpaceWire, FPGA LVDS
  • Connectors
    SMP, SMP - Male
  • Dimensions
    179.9 x 125.4 x 35 mm
  • Operating Temperature
    -30 to 60 Degree C
  • Storage Temperature
    -40 to 85 Degree C
  • Weight
    590 g
  • Configuration
    Module
  • Note
    Grade : Space Qualified
