DC to 26.5 GHz Space Qualified Coaxial Termination

SKU: T2M-SQ

Space Qualified RF Termination by KRYTAR
2 more products
Download Datasheet Request Information

Note : Your request will be directed to KRYTAR.

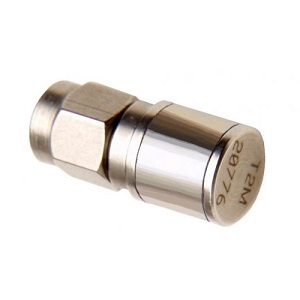

T2M-SQ Image

The T2M-SQ from KRYTAR is a Space Qualified RF Termination with a frequency range of DC-26.5 GHz and an impedance of 50 Ohm. This termination has a maximum power rating of 0.5 W and a VSWR of 1.09 (20- 26.5 GHz). It features a passivated stainless stee

Product Specifications

Product Details

  • Part Number
    T2M-SQ
  • Manufacturer
    KRYTAR
  • Description
    DC to 26.5 GHz Space Qualified Coaxial Termination

General Parameters

  • Type
    Coaxial Termination
  • Frequency
    DC to 26.5 GHz
  • Power
    0.5 W
  • VSWR
    1.06:1, 1.09:1
  • Impedance
    50 Ohms
  • Connector
    3.5 mm, 3.5 mm- Male
  • Operating Temperature
    -65 to 125 Degree C
  • Application
    Military, Commercial, Space
  • Dimension
    0.8 x 0.36 Inches
  • Note
    Space Qualified : Yes, Package Type : Connectorized
