Space Qualified 90 Degree Hybrid Coupler from 2 to 2.4 GHz

SKU: S6118

Space Qualified Coupler by Mercury Systems

Note : Your request will be directed to Mercury Systems.

The S6118 from Mercury Systems is a Space Qualified Coupler with Frequency 2 to 2.4 GHz, Coupling 3 dB, Power 20 W, Amplitude Balance ±0.5 dB, Phase Balance ±90 Degrees. Tags: Module. More details for S6118 can be seen below.

Product Specifications

Product Details

  • Part Number
    S6118
  • Manufacturer
    Mercury Systems
  • Description
    Space Qualified 90 Degree Hybrid Coupler from 2 to 2.4 GHz

General Parameters

  • Space Heritage
    Yes
  • Frequency
    2 to 2.4 GHz
  • Coupling
    3 dB
  • Power
    20 W
  • Amplitude Balance
    ±0.5 dB
  • Phase Balance
    ±90 Degrees
  • Isolation
    20 dB
  • Insertion Loss
    0.3 dB
  • VSWR
    1.25:1
  • Connector
    SMA, SMA - Female
  • Standard
    MIL-DTL-23971D, MIL-C-39012
  • Operating Temperature
    -65 to 85 Degree C
  • Package Type
    Module
  • Weight
    1.5 Oz
  • Application
    Space, High Reliability

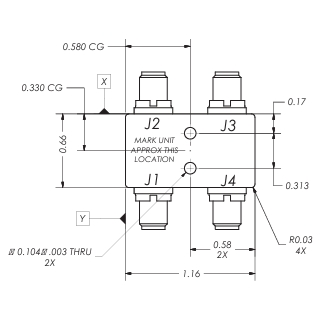

  • Dimension
    0.50 x 0.66 x 1.16 Inches
