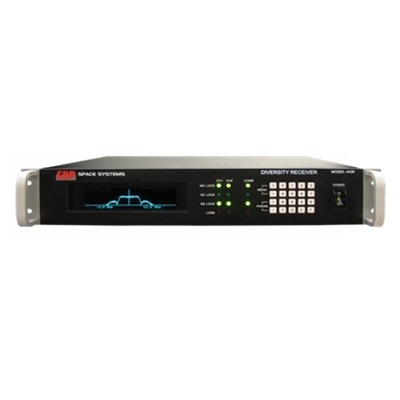

Digital Multi-Band RF Receiver Single/Dual/Quad Channel

SKU: Model 4426 2U/3U

GNSS Receiver by GDP Space Systems (4 more products)

Note : Your request will be directed to GDP Space Systems.

The Model 4426 2U/3U from GDP Space Systems is a GNSS Receiver with Input Frequency 100 Hz to 80 MHz, Output Frequency 2185 to 2485 MHz / 1700 to 1850 MHz / 1427 to 1545 MHz / 100 to 1150 MHz / 4400 to 5250 MHz, Noise Figure 4 dB, Bit Rate 50 bps to 20 Mbps, Data Rate 10 bps to 10 Mbps. More details for Model 4426 2U/3U can be seen below.

Product Specifications

Product Details

  • Part Number
    Model 4426 2U/3U
  • Manufacturer
    GDP Space Systems
  • Description
    Digital Multi-Band RF Receiver Single/Dual/Quad Channel

General Parameters

  • Frequency Band
    S Band, UL Band, LL Band, P Band, C Band
  • Input Frequency
    100 Hz to 80 MHz
  • Output Frequency
    2185 to 2485 MHz / 1700 to 1850 MHz / 1427 to 1545 MHz / 100 to 1150 MHz / 4400 to 5250 MHz
  • Noise Figure
    4 dB
  • Bit Rate
    50 bps to 20 Mbps
  • Data Rate
    10 bps to 10 Mbps
  • VSWR
    2.00:1
  • Frequency Response
    100 Hz to 15 MHz
  • Dynamic Range
    100 dB
  • Impedance
    50 Ohms
  • Interface
    TTL, RS-422, Ethernet
  • Modulation Format
    BPSK, QPSK, OQPSK, UQPSK, AQPSK, GMSK, SOQOSK ARTM Tier 1
  • Storage Temperature
    -40 to 70 Degree C
  • Operating Temperature
    10 to 40 Degree C
