SIMAC6

GNSS Simulator by Accord Software & Systems

Note : Your request will be directed to Accord Software & Systems.

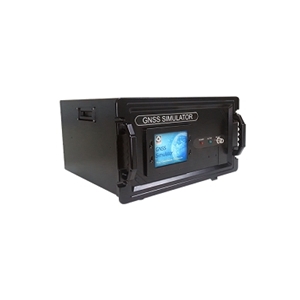

SIMAC6 Image

The SIMAC6 from Accord Software & Systems is a GNSS Simulator with Output Signal Level -130 dBm, Resolution 0.1 dB. Tags: Simulator with Screen. More details for SIMAC6 can be seen below.

Product Specifications

Product Details

  • Part Number
    SIMAC6
  • Manufacturer
    Accord Software & Systems
  • Description
    GNSS Simulator for GPS, GLONASS, Galileo, BeiDou, SBAS and IRNSS Constellations

General Parameters

  • Type
    Simulator with Screen
  • Equipment Type
    Rackmount
  • Number of Simultaneous Frequencies
    2
  • Channels
    Multi-Channel
  • Number of Channels
    up to 16
  • Constellations Supported
    GPS, GLONASS, Galileo, BeiDou, SBAS, IRNSS
  • GPS
    L1, L2, L5
  • GLONASS
    L1
  • Galileo
    E1
  • BeiDou
    B1
  • SBAS
    WAAS, EGNOS, MSAS, GAGAN
  • Harmonics
    -40 dBC
  • Interface
    Ethernet / LAN
  • Modulations
    BPSK
  • Phase Noise
    0.02 rad (RMS)
  • Spurious
    -40 dBC
  • Power Consumption
    65 W
  • Output Signal Level
    -130 dBm
  • Update Rate
    10 to 100 Hz
  • Resolution
    0.1 dB
  • Connectors
    N Type, N Type - Female, BNC
  • Dimensions
    482 x 545 x 266 mm (W x D x H)
  • Weight
    21 kg
  • Operating Temperature
    10 to 40 Degrees C
  • Storage Temperature
    -40 to 60 Degrees C
