1-6 GHz Low Noise Amplifier for Space Applications

SKU: TDLNA002093SEP

Note : Your request will be directed to Teledyne e2v HiRel Electronics.

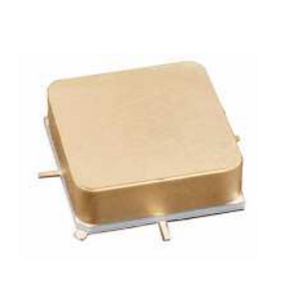

TDLNA002093SEP Image

The TDLNA002093SEP from Teledyne e2v HiRel Electronics is a Space Qualified RF Amplifier that operates from 1-6 GHz. This low-noise amplifier has a gain of 21 dB and a noise figure of 0.37 dB. It requires a maximum supply voltage of 6 V and has a maximum dissipated power of up to 1000 mW. The amplifier can be biased over a voltage range of 2.7-5 V (Vdd) and has an Iddq of 30-100 mA. It is designed using the GaAs pHEMT process and uses a 1.5 mm x 1.5 mm DFN-6 package and pinout. The amplifier is ideal for satcom, military, distributed antenna systems, GPS receivers, and space applications.

Product Specifications

Product Details

  • Part Number
    TDLNA002093SEP
  • Manufacturer
    Teledyne e2v HiRel Electronics
  • Description
    1-6 GHz Low Noise Amplifier for Space Applications

General Parameters

  • Type
    Low Noise Amplifier
  • Frequency
    1 to 6 GHz
  • Gain
    17.4 to 25 dB
  • Noise Figure
    0.37 dB
  • P1dB
    16 to 20 dBm
  • IP3
    30 dBm
  • Supply Voltage
    2.7 to 5 V
  • Current Consumption
    30 to 100 mA
  • Package Type
    Surface Mount
  • Space Qualified
    Yes
