45V Schottky Common Cathode Diode

SKU: 16SCYQ045C

Space Qualified Diode by Infineon Technologies (102 more products)
Download Datasheet Request Information

Note : Your request will be directed to Infineon Technologies.

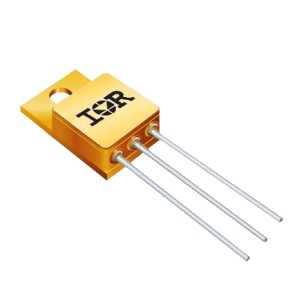

16SCYQ045C Image

The 16SCYQ045C from Infineon Technologies is a Space Qualified Diode with a DC reverse voltage of 45 V and a maximum average forward current of 16 A. This diode has a maximum forward voltage drop of 0.62 V and a maximum reverse leakage current of 190 mA. It has a junction capacitance of 1400 pF and a thermal resistance of 1.6 Degrees C/W. The diode has a mass of 4.3g and measures 115 X 170 mil. It is designed to meet the rigorous requirements of hirel environments and comes in a hermetic isolated TO-257AA package.

Product Specifications

Product Details

  • Part Number
    16SCYQ045C
  • Manufacturer
    Infineon Technologies
  • Description
    45V Schottky Common Cathode Diode

General Parameters

  • Section
    Power Diode
  • Types of Diode
    Schottky Barrier Diode
  • Configuration of Diode
    Dual Diode
  • Forward Current
    16 A
  • Forward Voltage
    0.42 to 0.67 V
  • Reverse Voltage
    45 V
  • Repetitive Peak Reverse Voltage
    45 V
  • Non-Repetitive Peak Forward Current
    150 A
  • Industry
    Space
  • RoHS Compliant
    Yes
  • Reverse Breakdown Voltage
    45 V
  • Temperature operating range
    -55 to 150 Degree C
  • Applications
    Hermetically Sealed, ceramic Eyelets, Low forward voltage Drop, High frequency operation, Guard ring for enhanced ruggedness and long term reliability, Lightweight.
  • Package Type
    Through Hole
  • Package
    TO-257AA
  • Space Standard
    MIL-PRF-19500
  • Total Capacitance
    1400 pF
