1.0 to 1.1 V, PIN Diode

SKU: BXY42-03(P)

Space Qualified Diode by Infineon Technologies (102 more products)
Download Datasheet Request Information

Note : Your request will be directed to Infineon Technologies.

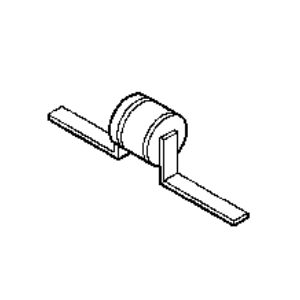

BXY42-03(P) Image

The BXY42-03(P) from Infineon Technologies is a Space Qualified Diode with Dynamic Resistance 1.2 to 3.5 ohm, Forward Voltage 1.0 to 1.1 V, Reverse Current 10 uA, Reverse Voltage 50 V, Non-Repetitive Peak Forward Current 5 A. Tags: Stud Mount. More details for BXY42-03(P) can be seen below.

Product Specifications

Product Details

  • Part Number
    BXY42-03(P)
  • Manufacturer
    Infineon Technologies
  • Description
    1.0 to 1.1 V, PIN Diode

General Parameters

  • Section
    Power Diode
  • Dynamic Resistance
    1.2 to 3.5 ohm
  • Configuration of Diode
    Single Diode
  • Forward Voltage
    1.0 to 1.1 V
  • Reverse Current
    10 uA
  • Reverse Voltage
    50 V
  • Non-Repetitive Peak Forward Current
    5 A
  • Industry
    Space
  • RoHS Compliant
    Yes
  • Reverse Breakdown Voltage
    50 V
  • Temperature operating range
    -55 to 175 Degree C
  • Applications
    PIN Diode for high Speed Switching of RF Signals, Very low Capacitance, Hermetically Sealed microwave package.
  • Package Type
    Stud Mount
  • Space Standard
    ESCC-5513/017, ESCC-5010
  • Total Capacitance
    0.26 to 0.29 pF
