2.6 to 4.0 V, 11 A, Fast Recovery Diode

SKU: HFA35HB120

Space Qualified Diode by Infineon Technologies (102 more products)

Note : Your request will be directed to Infineon Technologies.

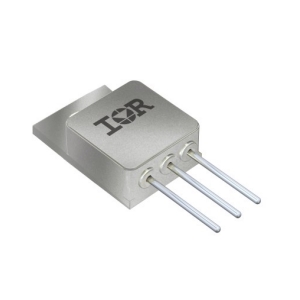

HFA35HB120 Image

The HFA35HB120 from Infineon Technologies is a Space Qualified Diode with Forward Current 11 A, Forward Voltage 2.6 to 4.0 V, Reverse Current 10 uA, Reverse Voltage 1200 V, Repetitive Peak Reverse Voltage 1200 V. Tags: Through Hole. More details for HFA35HB120 can be seen below.

Product Specifications

Product Details

  • Part Number
    HFA35HB120
  • Manufacturer
    Infineon Technologies
  • Description
    2.6 to 4.0 V, 11 A, Fast Recovery Diode

General Parameters

  • Section
    Power Diode
  • Types of Diode
    Fast Recovery Diode
  • Configuration of Diode
    Single Diode
  • Forward Current
    11 A
  • Forward Voltage
    2.6 to 4.0 V
  • Reverse Current
    10 uA
  • Reverse Voltage
    1200 V
  • Repetitive Peak Reverse Voltage
    1200 V
  • Non-Repetitive Peak Forward Current
    150 A
  • Recovery Time
    80 to 195 ns
  • Industry
    Space
  • RoHS Compliant
    Yes
  • Temperature operating range
    -55 to 150 Degree C
  • Applications
    Reduced RFI and EMI, Reduced Snubbing, Extensive Characterization of Recovery Parameters, Hermetic, Surgace Mount
  • Package Type
    Through Hole
  • Package
    TO-254AA
