1.7 to 2.3 V, 30 A, Fast Recovery Diode

SKU: HFA35HB60C

Space Qualified Diode by Infineon Technologies (102 more products)
Download Datasheet Request Information

Note : Your request will be directed to Infineon Technologies.

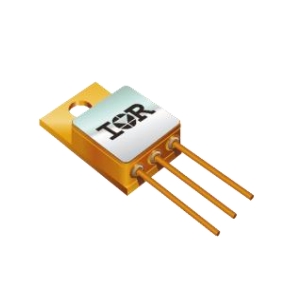

HFA35HB60C Image

The HFA35HB60C from Infineon Technologies is a Space Qualified Diode with Forward Current 30 A, Forward Voltage 1.7 to 2.3 V, Reverse Current 10 uA, Reverse Voltage 600 V, Repetitive Peak Reverse Voltage 600 V. Tags: Through Hole. More details for HFA35HB60C can be seen below.

Product Specifications

Product Details

  • Part Number
    HFA35HB60C
  • Manufacturer
    Infineon Technologies
  • Description
    1.7 to 2.3 V, 30 A, Fast Recovery Diode

General Parameters

  • Section
    Power Diode
  • Types of Diode
    Fast Recovery Diode
  • Configuration of Diode
    Dual Diode
  • Forward Current
    30 A
  • Forward Voltage
    1.7 to 2.3 V
  • Reverse Current
    10 uA
  • Reverse Voltage
    600 V
  • Repetitive Peak Reverse Voltage
    600 V
  • Non-Repetitive Peak Forward Current
    150 A
  • Recovery Time
    54 to 140 ns
  • Industry
    Space
  • RoHS Compliant
    Yes
  • Reverse Breakdown Voltage
    600 V
  • Temperature operating range
    -55 to 150 Degree C
  • Applications
    Reduced RFI and EMI, Reduced Snubbing, Extensive Characterization of Recovery Parameters, Hermetic, Surgace Mount
  • Package Type
    Through Hole
  • Package
    TO-254AA
  • Space Standard
    MIL-STD-750, MIL-PRF-19500
  • Total Capacitance
    24 to 36 pF
