1.17 to 1.52 V, 16 A, Fast Recovery Diode

SKU: HFB16HY20C

Space Qualified Diode by Infineon Technologies (102 more products)
Download Datasheet Request Information

Note : Your request will be directed to Infineon Technologies.

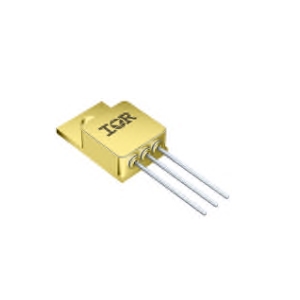

HFB16HY20C Image

The HFB16HY20C from Infineon Technologies is a Space Qualified Diode with Forward Current 16 A, Forward Voltage 1.17 to 1.52 V, Reverse Current 10 to 200 uA, Reverse Voltage 200 V, Repetitive Peak Reverse Voltage 200 V. Tags: Through Hole. More details for HFB16HY20C can be seen below.

Product Specifications

Product Details

  • Part Number
    HFB16HY20C
  • Manufacturer
    Infineon Technologies
  • Description
    1.17 to 1.52 V, 16 A, Fast Recovery Diode

General Parameters

  • Section
    Power Diode
  • Types of Diode
    Fast Recovery Diode
  • Configuration of Diode
    Single Diode
  • Forward Current
    16 A
  • Forward Voltage
    1.17 to 1.52 V
  • Reverse Current
    10 to 200 uA
  • Reverse Voltage
    200 V
  • Repetitive Peak Reverse Voltage
    200 V
  • Non-Repetitive Peak Forward Current
    140 A
  • Recovery Time
    35 to 61 ns
  • Industry
    Space
  • RoHS Compliant
    Yes
  • Reverse Breakdown Voltage
    200 V
  • Temperature operating range
    -55 to 150 Degree C
  • Applications
    Reduced RFI and EMI, Reduced Snubbing, Extensive Characterization of Recovery Parameters, Hermetic, Surgace Mount
  • Package Type
    Through Hole
  • Package
    TO-257AA
  • Space Standard
    MIL-STD-750, MIL-PRF-19500
  • Total Capacitance
    200 pF
