1.08 to 1.25 V, 60 A, Fast Recovery Diode

SKU: HFB60HF20C

Space Qualified Diode by Infineon Technologies (102 more products)
Download Datasheet Request Information

Note : Your request will be directed to Infineon Technologies.

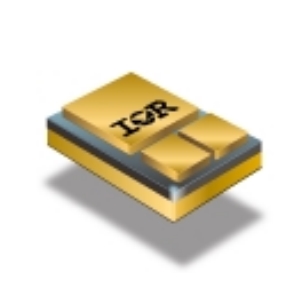

HFB60HF20C Image

The HFB60HF20C from Infineon Technologies is a Space Qualified Diode with Forward Current 60 A, Forward Voltage 1.08 to 1.25 V, Reverse Current 10 to 100 uA, Reverse Voltage 200 V, Repetitive Peak Reverse Voltage 200 V. Tags: Surface Mount. More details for HFB60HF20C can be seen below.

Product Specifications

Product Details

  • Part Number
    HFB60HF20C
  • Manufacturer
    Infineon Technologies
  • Description
    1.08 to 1.25 V, 60 A, Fast Recovery Diode

General Parameters

  • Section
    Power Diode
  • Types of Diode
    Fast Recovery Diode
  • Configuration of Diode
    Dual Diode
  • Forward Current
    60 A
  • Forward Voltage
    1.08 to 1.25 V
  • Reverse Current
    10 to 100 uA
  • Reverse Voltage
    200 V
  • Repetitive Peak Reverse Voltage
    200 V
  • Non-Repetitive Peak Forward Current
    300 A
  • Recovery Time
    35 to 58 ns
  • Industry
    Space
  • RoHS Compliant
    Yes
  • Reverse Breakdown Voltage
    200 V
  • Temperature operating range
    -55 to 150 Degree C
  • Applications
    Reduced RFI and EMI, Reduced Snubbing, Extensive Characterization of Recovery Parameters, Hermetic, Surgace Mount
  • Package Type
    Surface Mount
  • Package
    SMD-1
  • Total Capacitance
    140 pF
