Military Qualified Ceramic Schottky Barrier Diode

SKU: JANTXV1N5711UB

Space Qualified Diode by Microchip Technology
349 more products
Request Information

Note : Your request will be directed to Microchip Technology.

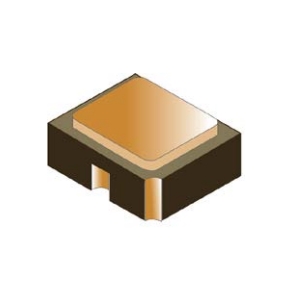

JANTXV1N5711UB Image

The JANTXV1N5711UB from Microchip Technology is a Space Qualified Diode with Forward Current 0.001 to 0.015 A, Forward Voltage 0.41 to 1.0 V, Reverse Current 10 uA, Reverse Voltage 50 V, Repetitive Peak Reverse Voltage 50 V. Tags: Stud Mount. More details for JANTXV1N5711UB can be seen below.

Product Specifications

Product Details

  • Part Number
    JANTXV1N5711UB
  • Manufacturer
    Microchip Technology
  • Description
    Military Qualified Ceramic Schottky Barrier Diode

General Parameters

  • Section
    Power Diode
  • Types of Diode
    Schottky Barrier Diode
  • Configuration of Diode
    Single Diode
  • Forward Current
    0.001 to 0.015 A
  • Forward Voltage
    0.41 to 1.0 V
  • Reverse Current
    10 uA
  • Reverse Voltage
    50 V
  • Repetitive Peak Reverse Voltage
    50 V
  • Industry
    Space
  • RoHS Compliant
    Yes
  • Reverse Breakdown Voltage
    70 V
  • Temperature operating range
    -65 to 150 Degree C
  • Package Type
    Stud Mount
  • Package
    DO-35
  • Total Capacitance
    2.0 pF
