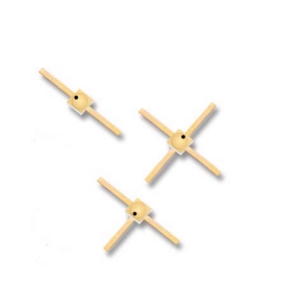

The DME2205 from Skyworks is a space-qualified Silicon Beam-Lead diode with a frequency range of 2-8 GHz. It has a forward voltage of 300-400 mV and a maximum current of up to 100 mA. This diode has a power dissipation of 75 mW/junction and a resistance of up to 5 Ohms. It has a total capacitance of 0.60 pF and a reverse breakdown voltage of up to 3 V. This silicon Schottky barrier mixer diode has a ceramic-chip package and is designed for microwave integrated circuits, mixers, and detectors applications.
