DMJ2088

Space Qualified Diode by Skyworks (108 more products)
Download Datasheet Request Information

Note : Your request will be directed to Skyworks.

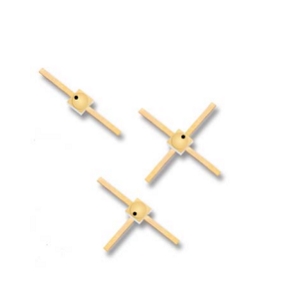

DMJ2088 Image

The DMJ2088 from Skyworks is a Space Qualified Diode with Forward Voltage 550 to 650 mV, Reverse Breakdown Voltage 4 V, Temperature operating range -65 to 175 Degree C, Total Capacitance 0.30 to 0.50 pF (Junction Capacitance). Tags: Ceramic, Chip. More details for DMJ2088 can be seen below.

Product Specifications

Product Details

  • Part Number
    DMJ2088
  • Manufacturer
    Skyworks
  • Description
    Silicon Beam-Lead Schottky Mixer Diode, Singles, Pairs And Quads Bondable And Packaged Chips

General Parameters

  • Section
    RF Diode
  • Types of Diode
    Schottky Diode
  • Forward Voltage
    550 to 650 mV
  • Reverse Breakdown Voltage
    4 V
  • Temperature operating range
    -65 to 175 Degree C
  • Applications
    Microwave integrated circuits, Mixers, Detectors
  • Package Type
    Ceramic, Chip
  • Total Capacitance
    0.30 to 0.50 pF (Junction Capacitance)
