Lite Sat® 1.3M

SATCOM Antenna by Lite Coms (1 more product)

Note : Your request will be directed to Lite Coms.

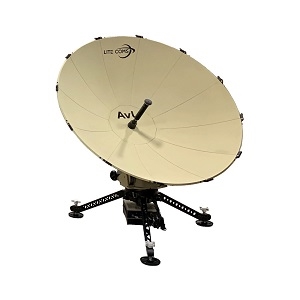

Lite Sat® 1.3M Image

The Lite Sat® 1.3M from Lite Coms is a SATCOM Antenna with Frequency 7.9 to 31 GHz (TX) / 10.7 to 21.2 GHz (RX), Tx Frequency 13.75 to 14.5 GHz, 30 to 31 GHz, 29 to 31 GHz, 7.9 to 8.4 GHz, 12.75 to 13.25 GHz, Rx Frequency 10.7 to 12.75 GHz, 20.2 to 21.2 GHz, 19.2 to 21.2 GHz, 7.25 to 7.75 GHz, 10.7 to 10.95 GHz, Gain 15 to 21 dB, Tx Gain 15 to 21 dB. Tags: Parabolic Reflector. More details for Lite Sat® 1.3M can be seen below.

Product Specifications

Product Details

  • Part Number
    Lite Sat® 1.3M
  • Manufacturer
    Lite Coms
  • Description
    1.3 m, Parabolic Satcom Antenna from 7.9 to 31 GHz (TX) / 10.7 to 21.2 GHz (RX)

General Parameters

  • Segment
    Ground
  • Type
    Parabolic Reflector
  • Deployment
    Ground
  • Band
    Ku Band, Ka Band, X Band
  • Frequency
    7.9 to 31 GHz (TX) / 10.7 to 21.2 GHz (RX)
  • Tx Frequency
    13.75 to 14.5 GHz, 30 to 31 GHz, 29 to 31 GHz, 7.9 to 8.4 GHz, 12.75 to 13.25 GHz
  • Rx Frequency
    10.7 to 12.75 GHz, 20.2 to 21.2 GHz, 19.2 to 21.2 GHz, 7.25 to 7.75 GHz, 10.7 to 10.95 GHz
  • Gain
    15 to 21 dB
  • Tx Gain
    15 to 21 dB
  • Rx Gain
    15 to 21 dB
  • Horizontal Beamwidth
    95 Degree
  • Vertical Beamwidth
    5 to 95 Degree
  • Wind rating
    30 mph gusting to 45 mph with anchors
  • AC Voltage
    110 to 240V
  • Mounting
    Tripod Mount
  • Weight
    50 lbs
  • Dimension
    29.59" x 15.50" x 9.38"
  • Diameter
    1.3 m
  • Operating Temperature
    -32 to 60 Degree C
  • Storage Temperature
    -46 to 71 Degree C
  • Application
    VSAT, Military World Wide Deployment, Executive Travel Teams, Border Security, Law Enforcement, Counterterrorism, SNG, EDD Teams, Special Operations Teams
  • Note
    EIRP (dBW) : 56 to 67.4 dBW
