High Gain BroadBand Space Antenna

SKU: FALCCON

Satellite Antenna by Redwire Space
Download Datasheet Request Information

Note : Your request will be directed to Redwire Space.

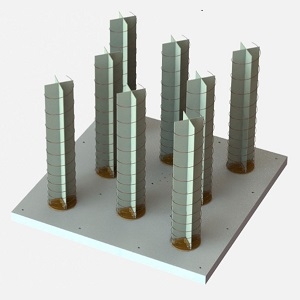

FALCCON Image

The FALCCON from Redwire Space is a Satellite Antenna with Frequency Range 1 to 2 GHz, Antenna Gain 15.5 to 18 dBi, Mass 10000 g. More details for FALCCON can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    FALCCON
  • Manufacturer
    Redwire Space
  • Description
    High Gain BroadBand Space Antenna

General Parameters

  • Space Heritage
    Yes
  • Frequency Band
    GPS L1 Band
  • Frequency Range
    1 to 2 GHz
  • Antenna Gain
    15.5 to 18 dBi
  • Mass
    10000 g
  • Connector
    PSM, TNC
  • Application
    MIDS Link-16, GNSS, Commercial OMMs, Telemetry, Radar, SIGINT
  • Dimension
    800 x 800 x 380 mm (High Gain), 600 x 600 x 380 mm (Intermediate Gain)
