CubeSat 6U Platform

Satellite Bus & Platform by ISISPACE
3 more products
Request Information

Note : Your request will be directed to ISISPACE.

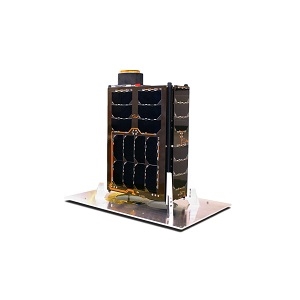

CubeSat 6U Platform Image

The CubeSat 6U Platform from ISISPACE is a Satellite Bus & Platform with Payload Volume 2.5 to 3 U, Payload Average Power Upto 20 W (Playload), Payload Peak Power Upto 60 W (Generation), Bus Provided Redundant Storage Upto 64 GB, Symbol Rate Uplink 9.6 kbps (UHF/VHF). More details for CubeSat 6U Platform can be seen below.

Product Specifications

Product Details

  • Part Number
    CubeSat 6U Platform
  • Manufacturer
    ISISPACE
  • Description
    The 6-Unit CubeSat Bus builds upon the engineering expertise and subsystem heritage developed at ISIS over a decade

General Parameters

  • Satellite Type
    CubeSat
  • Payload Volume
    2.5 to 3 U
  • Payload Average Power
    Upto 20 W (Playload)
  • Payload Peak Power
    Upto 60 W (Generation)
  • Bus Provided Redundant Storage
    Upto 64 GB
  • Symbol Rate Uplink
    9.6 kbps (UHF/VHF)
  • Symbol Rate Downlink
    0.5 Mbps (VHF/UHF), 4.3 Mbps (S)
  • Knowledge Accuracy
    Up to 0.1 Degree (Advanced ADCS)
  • Space Heritage
    Yes
  • Application
    Military, Commercial, Scientific, Signals Intelligence (SIGINT), Geospatial Intelligence (GEOINT), Internet-of-Things services (IoT), air traffic monitoring (ADS-B), Earth Observation (EO), Space Science
