240-400 MHz SATCOM Antenna

SKU: SAT-MP-320

SATCOM Antenna by TACO Antenna
Download Datasheet Request Information

Note : Your request will be directed to TACO Antenna.

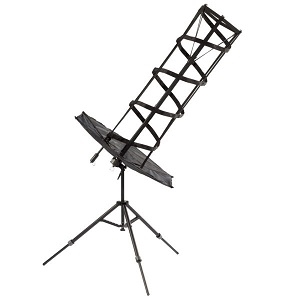

SAT-MP-320 Image

The SAT-MP-320 from TACO Antenna is a SATCOM Antenna with Frequency 240 to 400 MHz, Gain 11 dBi, Input Power 200 W. Tags: Helical Antenna. More details for SAT-MP-320 can be seen below.

Product Specifications

Product Details

  • Part Number
    SAT-MP-320
  • Manufacturer
    TACO Antenna
  • Description
    240-400 MHz SATCOM Antenna

General Parameters

  • Deployment
    Ground
  • Type
    Helical Antenna
  • Antenna Sub-Type
    Manpack Antenna
  • Polarization
    RHCP
  • Band
    UHF Band
  • Frequency
    240 to 400 MHz
  • Gain
    11 dBi
  • Input Power
    200 W
  • Horizontal Beamwidth
    68 Degrees
  • Impedance
    50 Ohms
  • VSWR
    1.30:1, 1.75:1
  • Wind rating
    1.33 ft2(Wind Area)
  • Mounting
    Tripod Mount
  • Connector
    BNC - Male
  • Colour
    Dull Back
  • Weight
    6.6 lbs
  • Length
    20 Inch
  • Operating Temperature
    -40 to 80 Degrees C
  • Storage Temperature
    -57 to 93 Degrees C
  • Application
    Military, SATCOM
