60 V Radiation Hardened Logic Level Power MOSFET

SKU: IRHLUC7670Z4

Space Qualified MOSFETs by Infineon Technologies
301 more products
Download Datasheet Request Information

Note : Your request will be directed to Infineon Technologies.

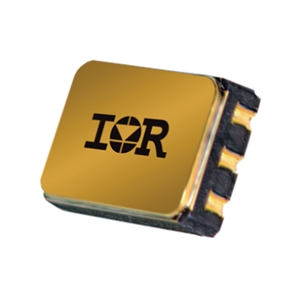

IRHLUC7670Z4 Image

The IRHLUC7670Z4 from Infineon Technologies is a Space Qualified MOSFET with a continuous drain current range of -0.41 to 0.89 A. This power MOSFET has a drain-to-source breakdown voltage of 60 V and a gate threshold voltage of 1-2 V. It has a pulsed d

Product Specifications

Product Details

  • Part Number
    IRHLUC7670Z4
  • Manufacturer
    Infineon Technologies
  • Description
    60 V Radiation Hardened Logic Level Power MOSFET

General Parameters

  • Types of MOSFET
    N-Channel Enhancement Mode, P-Channel Enhancement Mode
  • Transistor Polarity
    N-Channel, P-Channel
  • Number of Channel
    Dual
  • Continous Drain Current
    -0.65 to 0.89 A
  • Drain Source Resistance
    750 to 1600 milliohm
  • Drain Source Breakdown Voltage
    -60 to 60 V
  • Gate Source Voltage
    -10 to 10 V
  • Gate Source Threshold Voltage
    -2 to 2 V
  • Gate Charge
    3.6 nC
  • Power Dissipation
    1 W
  • Temperature operating range
    -55 to 150 Degree C
  • Package
    LCC-6
  • Industry
    Space, Military
  • Standard
    MIL-STD-750 Class 0B
  • Space Standard
    MIL-STD-750, MIL-PRF-19500
  • Package Type
    Surface Mount
