-50 V Space Qualified P-channel MOSFET for Power Management

SKU: BSS84L

Space Qualified MOSFETs by onsemi
2 more products
Download Datasheet Request Information

Note : Your request will be directed to onsemi.

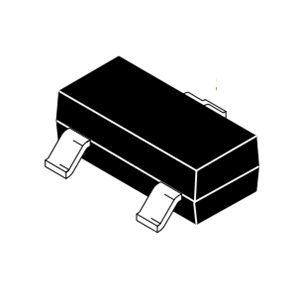

BSS84L Image

The BSS84L from onsemi is a Space Qualified Single P-channel MOSFET has a drain-source breakdown voltage of over -50 V and a gate threshold voltage of -0.9 to -2.0 V. This MOSFET has a continuous drain current of up to -130 mA and a thermal resistance

Product Specifications

Product Details

  • Part Number
    BSS84L
  • Manufacturer
    onsemi
  • Description
    -50 V Space Qualified P-channel MOSFET for Power Management

General Parameters

  • Types of MOSFET
    P-Channel Enhancement Mode
  • Transistor Polarity
    P-Channel
  • Number of Channel
    Single
  • Continous Drain Current
    -0.13 A
  • Drain Source Resistance
    10000 milliohm
  • Drain Source Breakdown Voltage
    -50 V
  • Gate Source Voltage
    -20 to 20 V
  • Gate Source Threshold Voltage
    -22 V
  • Gate Charge
    2.20 nC
  • Power Dissipation
    0.225 W
  • Temperature operating range
    -55 to 150 Degree C
  • Qualification
    AEC-Q101
  • Package
    SOT-23-3
  • Industry
    Industrial, Medical, Space, Automotive
  • RoHS Compliant
    Yes
  • Package Type
    Surface Mount
  • Applications
    DC-DC converters, Load Switching
